Some items may require Minimum Order Quantities. Please call to see if these minimum quantities apply.
Description

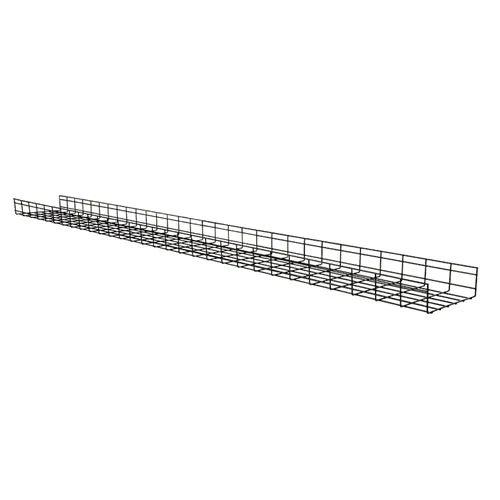

10' Long, 6" Deep Tray

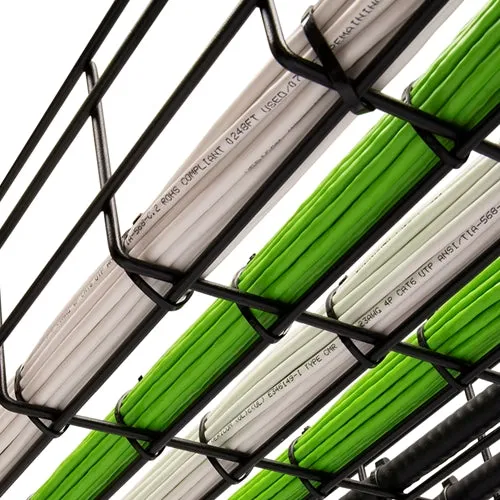

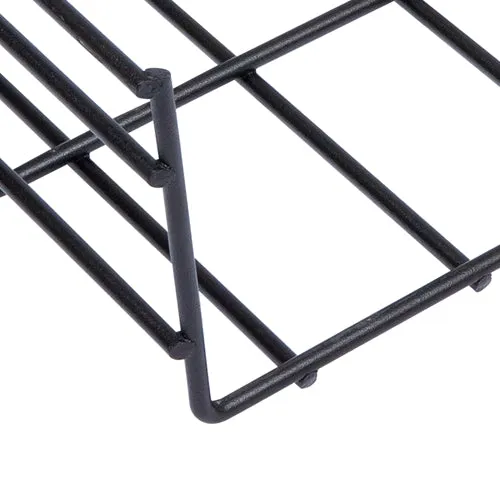

This series wire basket trays provide a durable yet adaptable pathway for routing cables along a wall, floor, or ceiling in a variety of applications, from short runs in a data closet to high-density data center installations. Each tray is constructed of welded high-strength carbon steel wire with stringers spaced every 2” and cross bars every 4”, providing a rigid structure that can handle large cable bundles. And with a black powder coated finish, our wire basket trays will protect both cabling and installers from cuts, scratches, and frays. Each tray section is 118” long but can be cut to any required length.
Features
Features

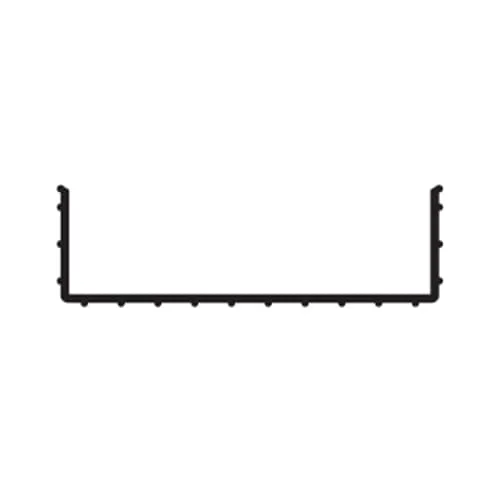

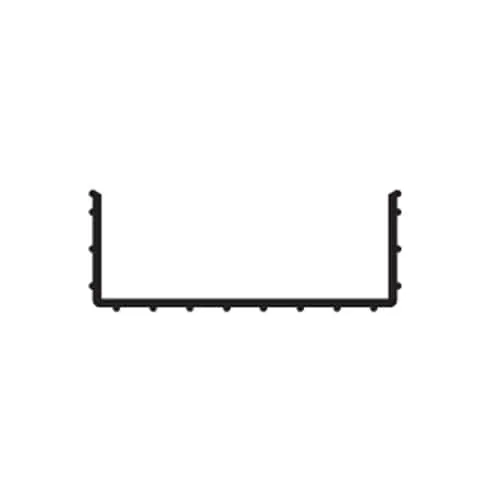

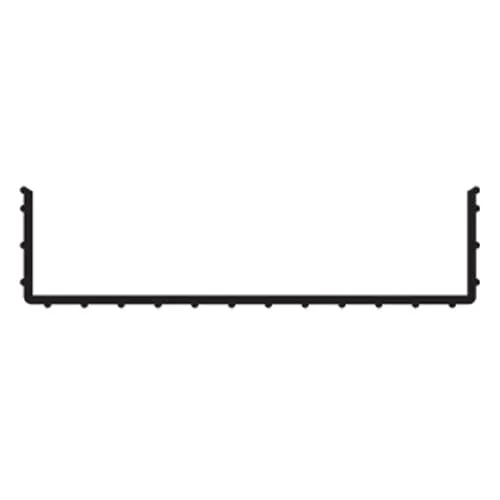

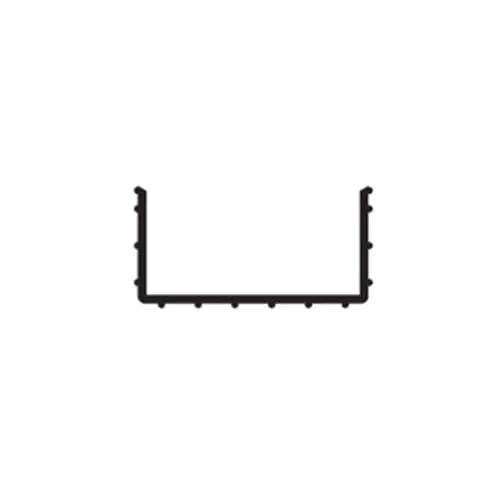

- Available in 12", 16", 20" and 24" widths
- 5mm diameter carbon steel wire
- Field-adjustable to fit any installation environment
- Conforms to IEC 61537 international standards for cable tray systems
Specifications
Specifications
Material: High-strength carbon wire (0.197” [5mm] dia.)
Finish: Black powder coat
Dimensions 10' length, 6" deep
| Width (in) | Weight/Pc (lb) | Load (lb/ft)* | Cable Fill** | Splice Qty | Availability | ||
| 5 ft span | 6.5 ft span | CAT6*** | CAT6A*** | ||||
| 12 | 20.61 |
78.82 |
58.73 |
885 |
637 |
4 | Special order |
| 16 | 23.70 |
95.82 |
64.92 |
1180 |
849 |
4 | Special order |
| 20 | 26.79 |
95.82 |
71.09 |
1475 |
1062 |
4 | Special order |
| 24 | 29.87 |
98.91 |
61.82 |
1770 |
1274 |
4 | Special order |
| *Load calculations based on IEC 61537-2007 standards for cable tray systems testing. | |||||||
| **Cable Fill capacity based on NEC allowable fill of 50%. | |||||||
| ***CAT6 rate based on 0.224” diameter; CAT6A rate based on 0.264” diameter. Actual diameters vary by cable manufacturer. | |||||||
What's in the Box?
What's in the Box?
Qty 1 - 10' Long, 6" Wire Basket Tray
